Description

Feature:


The filter has a 1dB bandwidth of 4MHz and a steep cut-off characteristic. The performance optimization of the 868MHz remote control and RFID receiver can effectively filter out out-of-band signals, reduce noise and increase the dynamic range.

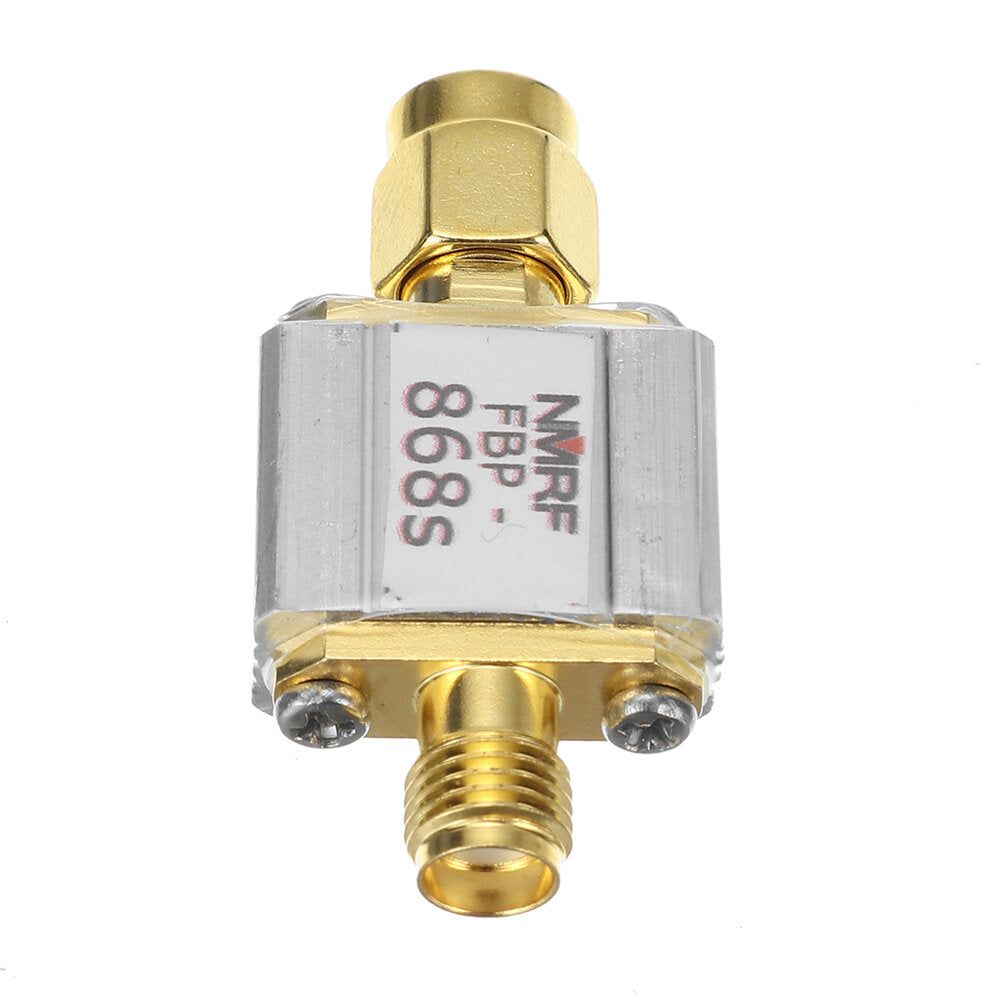

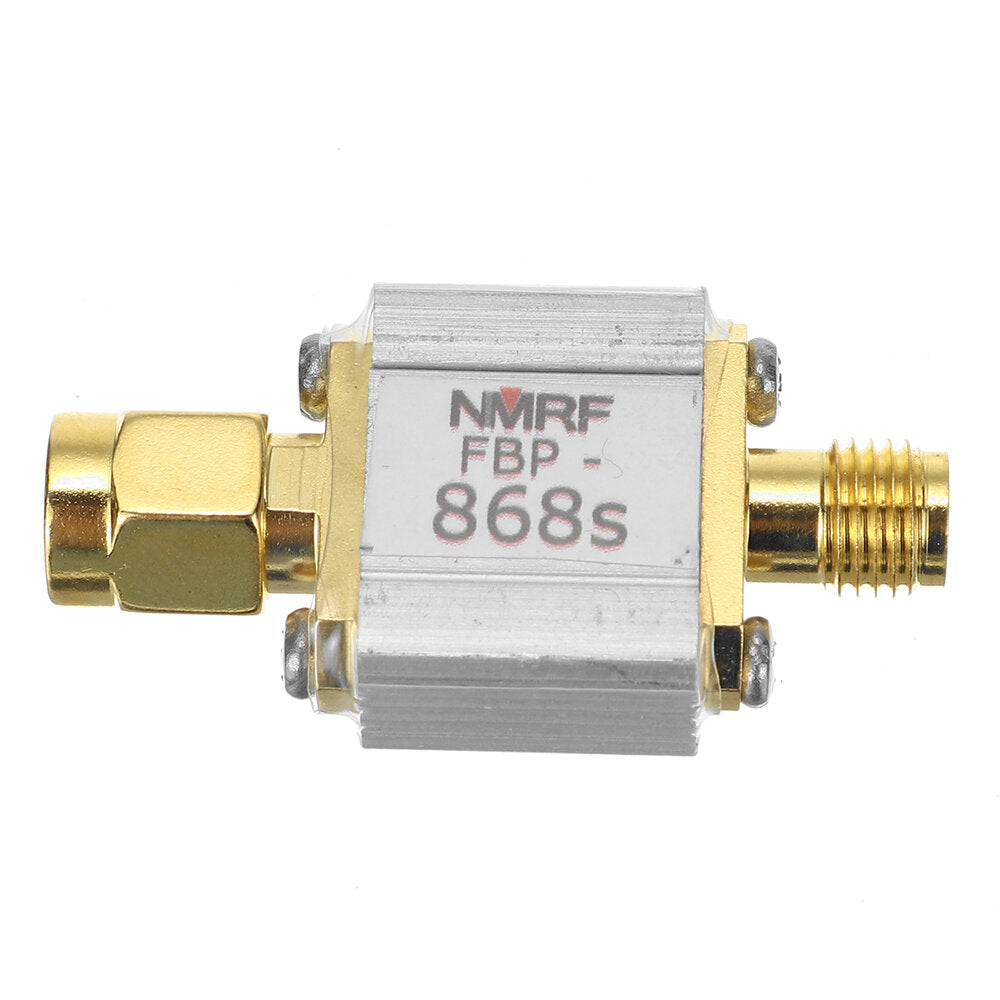

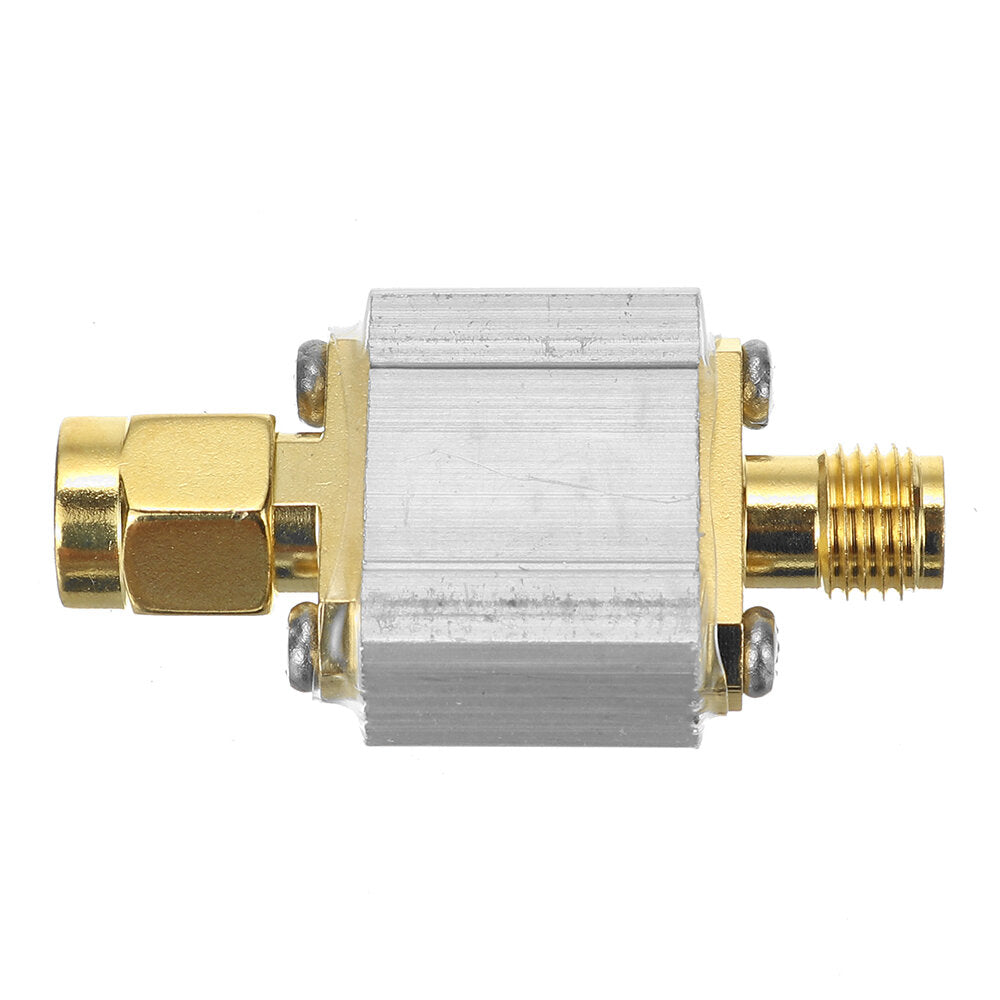

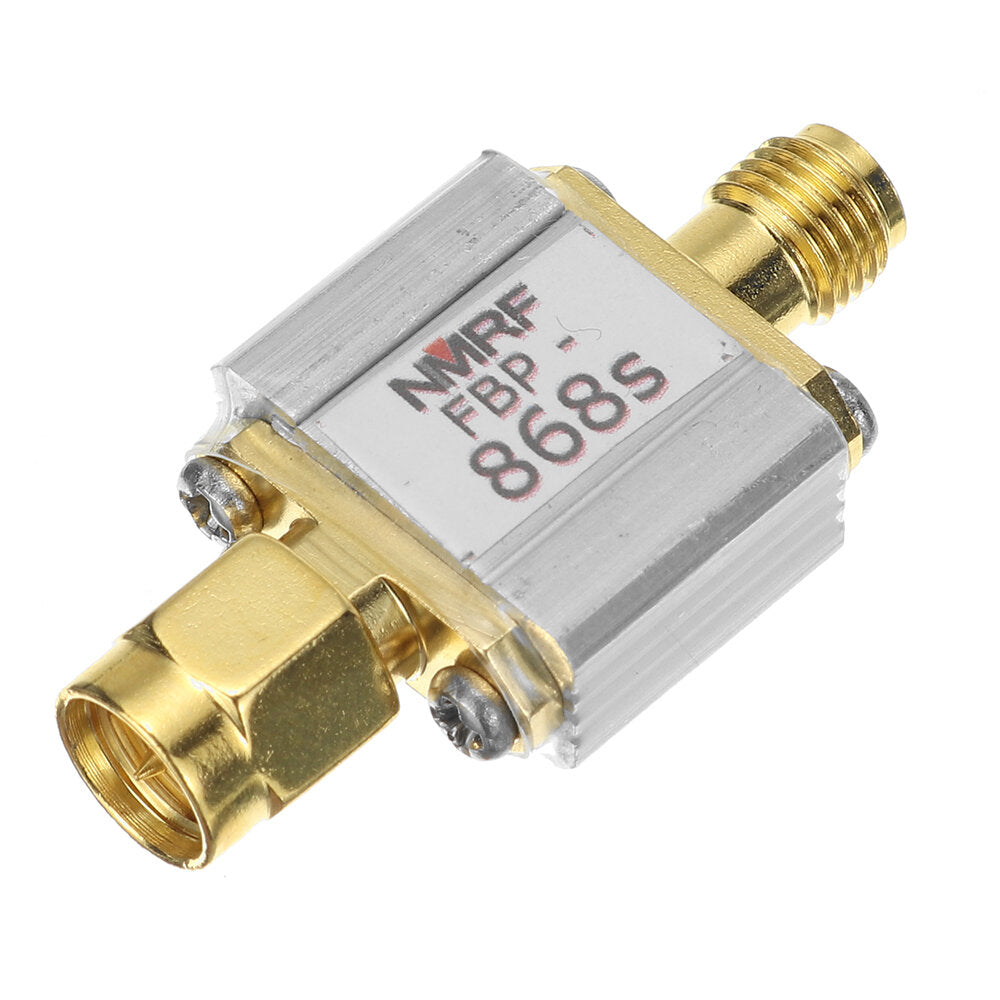

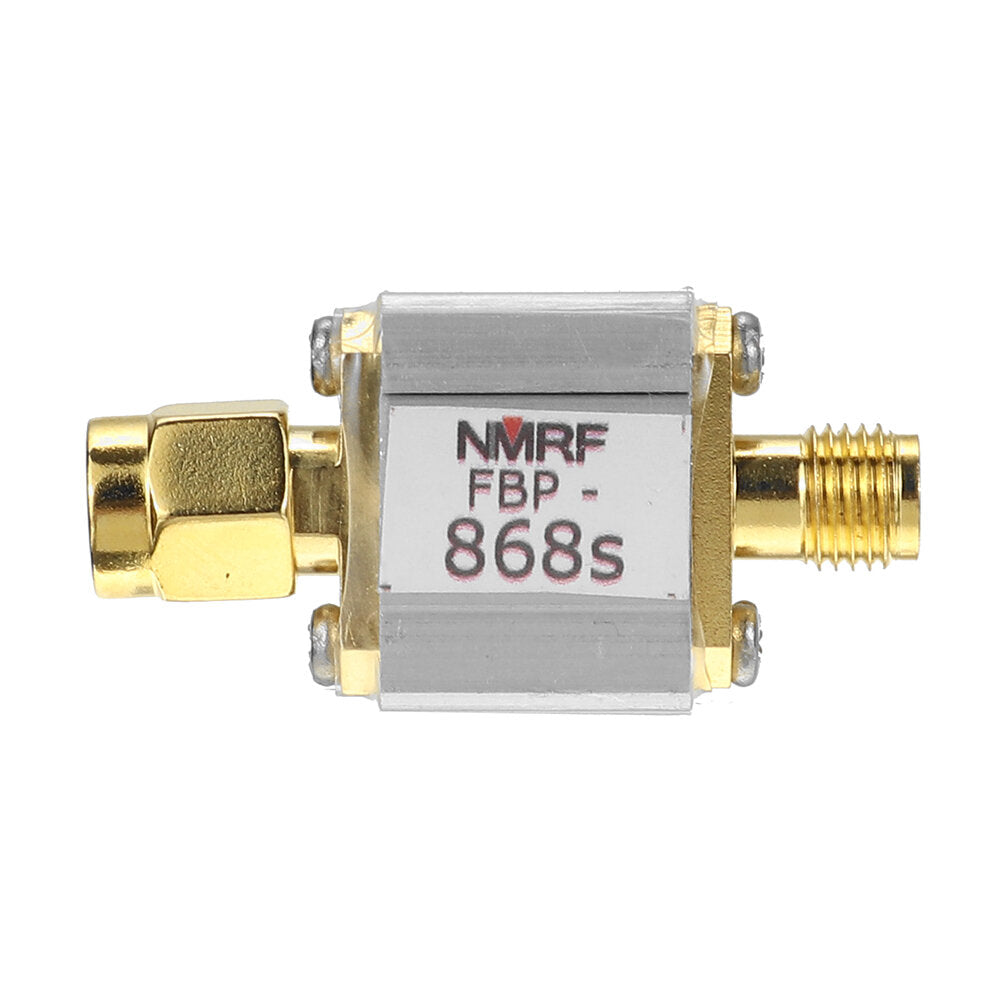

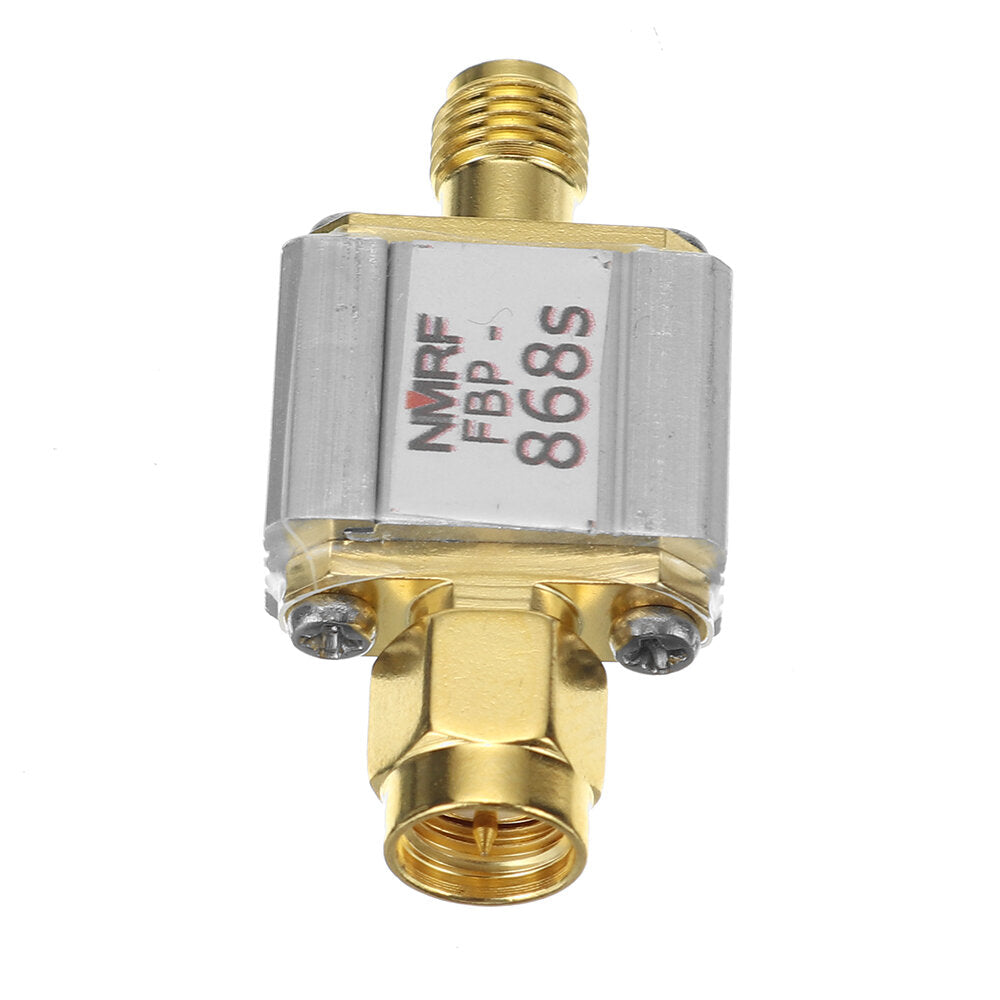

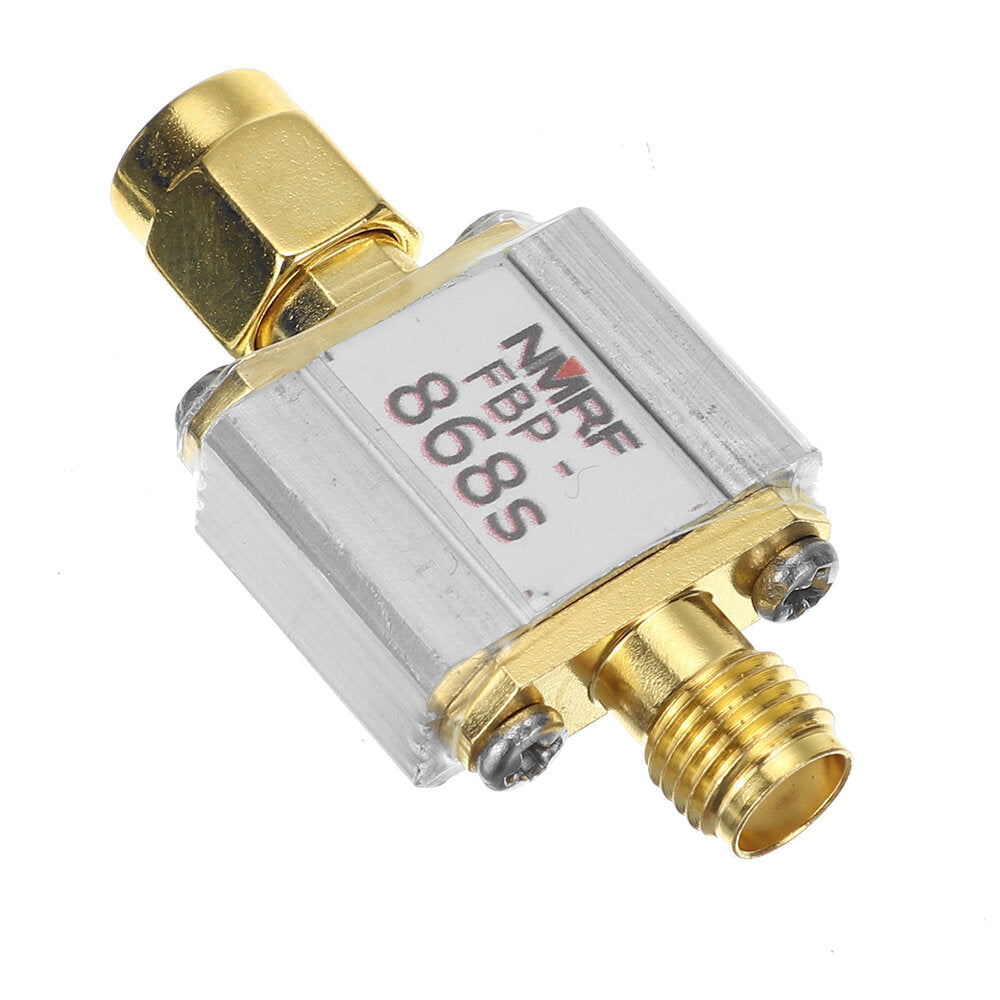

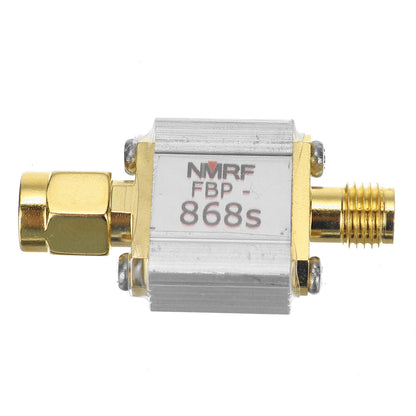

Model: FBP-868S

Impedance: 50 Ohms

Center frequency: 868 MHz

Passband (1dB bandwidth): 866ÔÇö870 MHz

In-band insertion loss: < 3.5 dB

Maximum Carrying Power: 100 mW (20 dBm)

Interface: SMA-M, SMA-F

Frequency response diagram (marked as 3dB bandwidth, sweep center frequency: 868MHz, blue line span: 100MHz, vertical scale: 10dB per division):


Package includes:


1 x Filter
