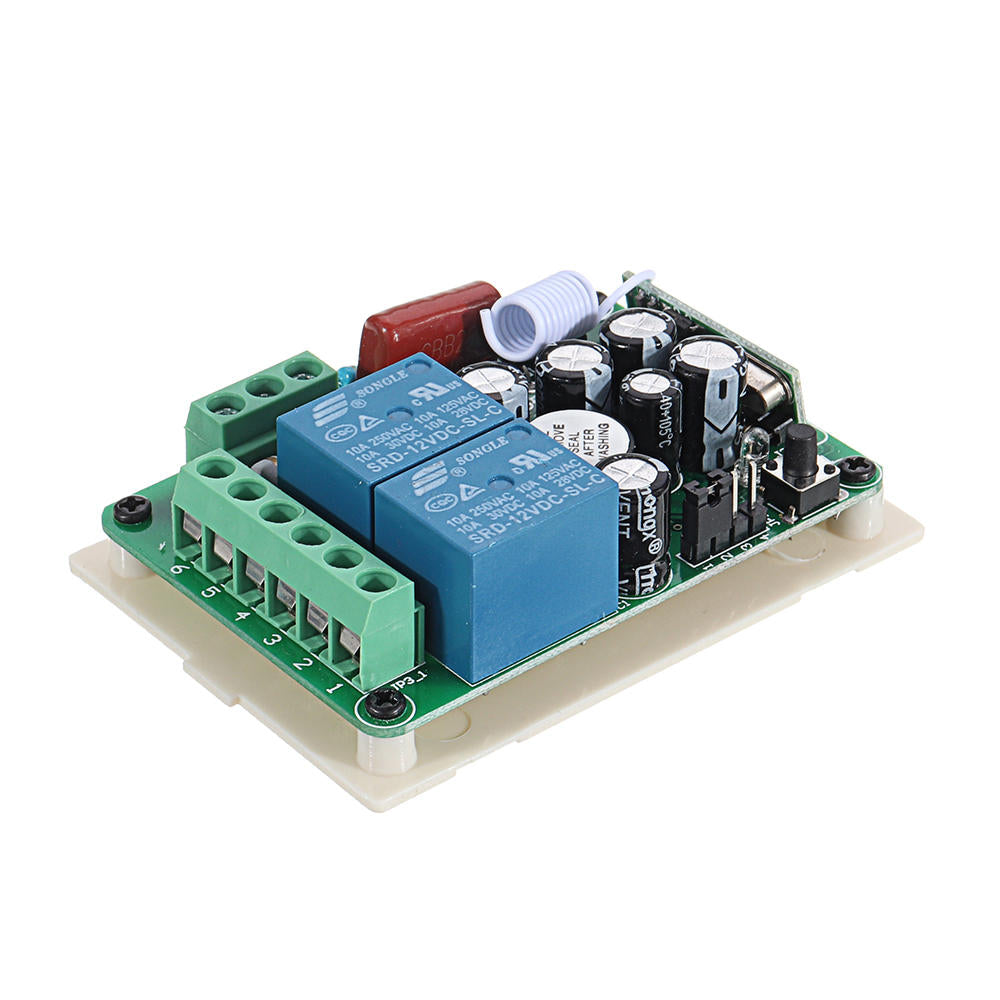

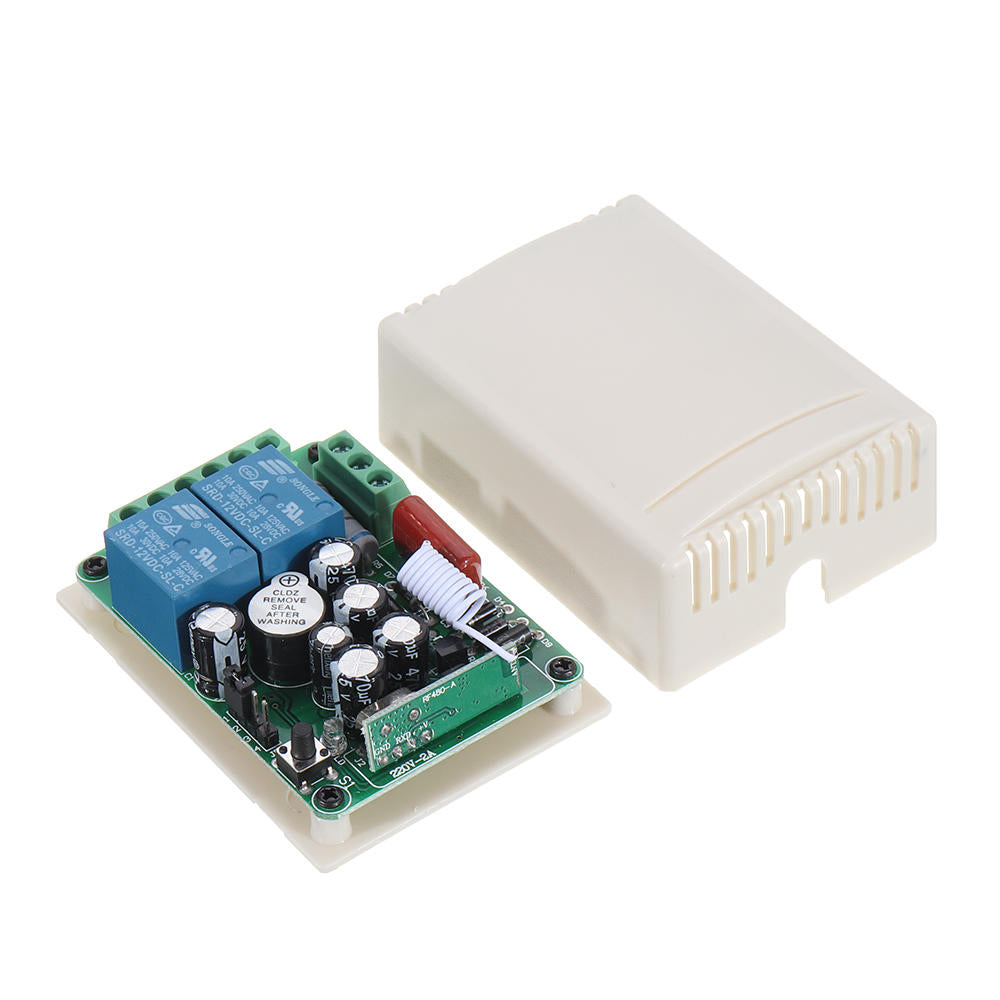

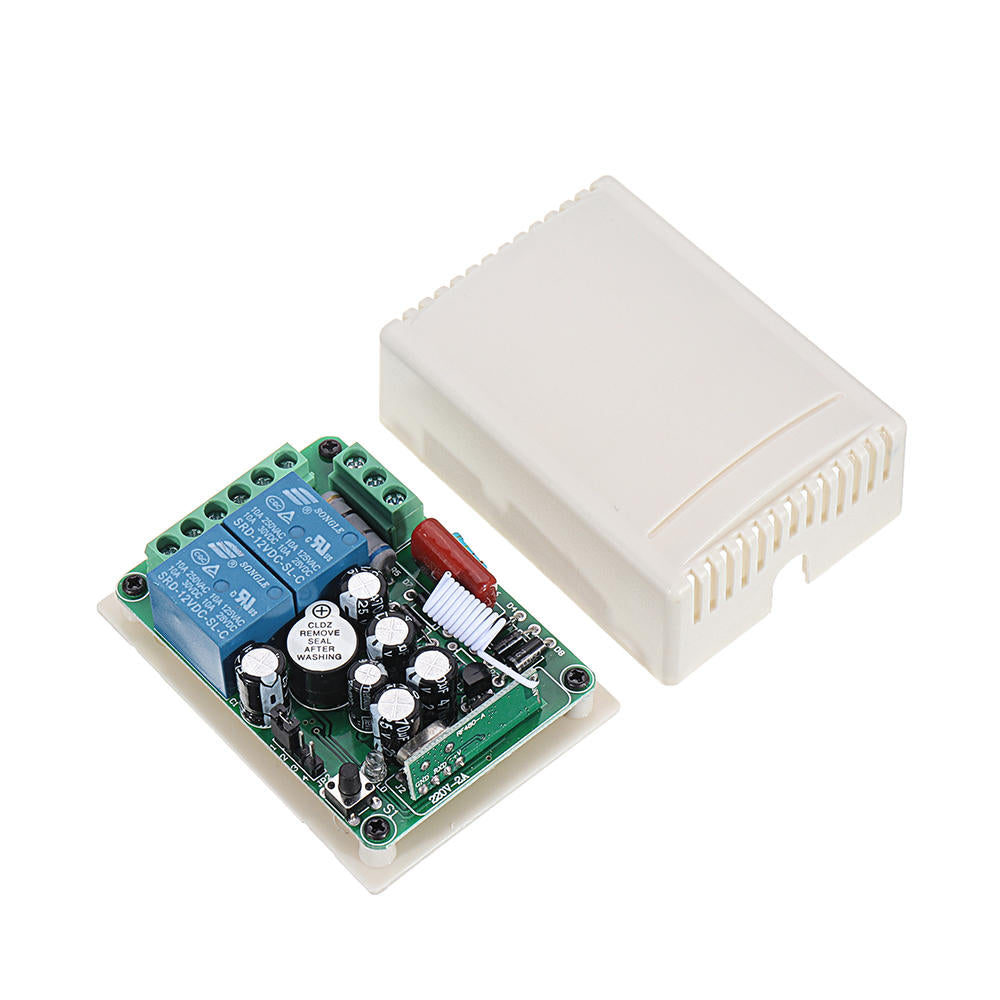

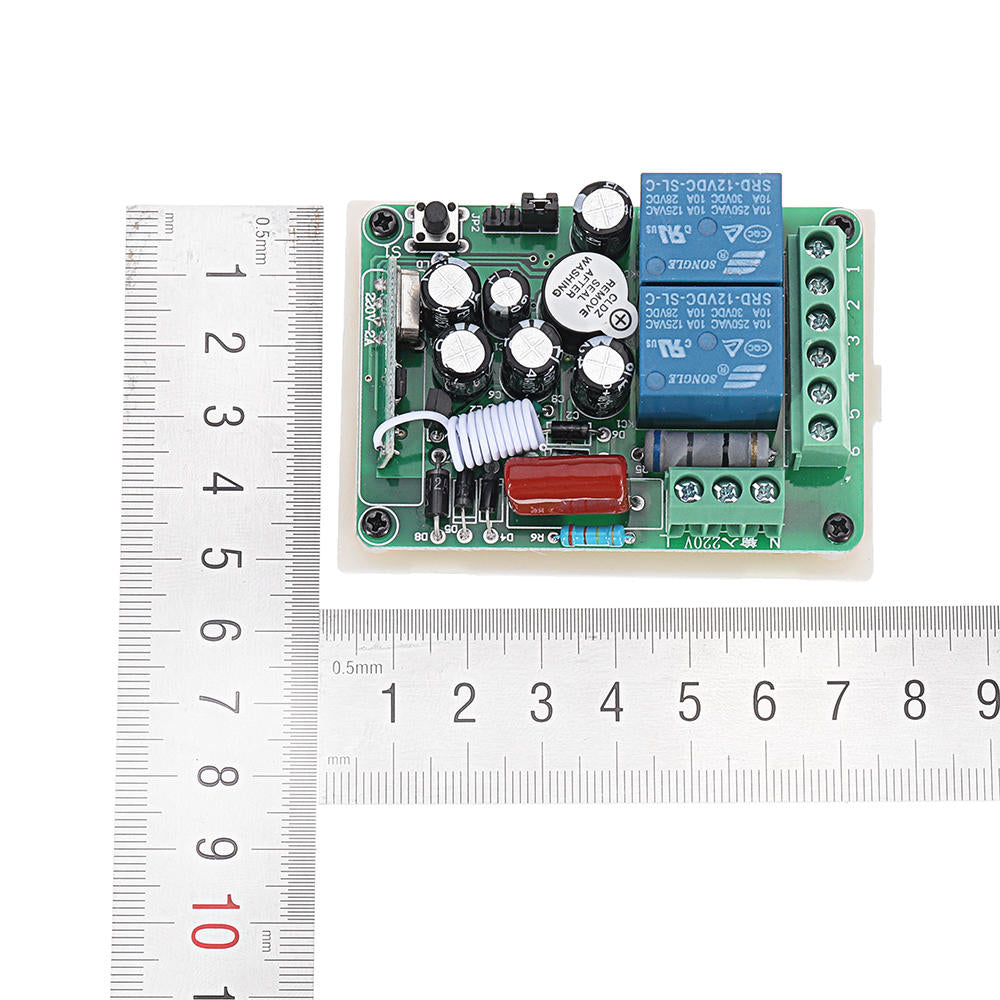

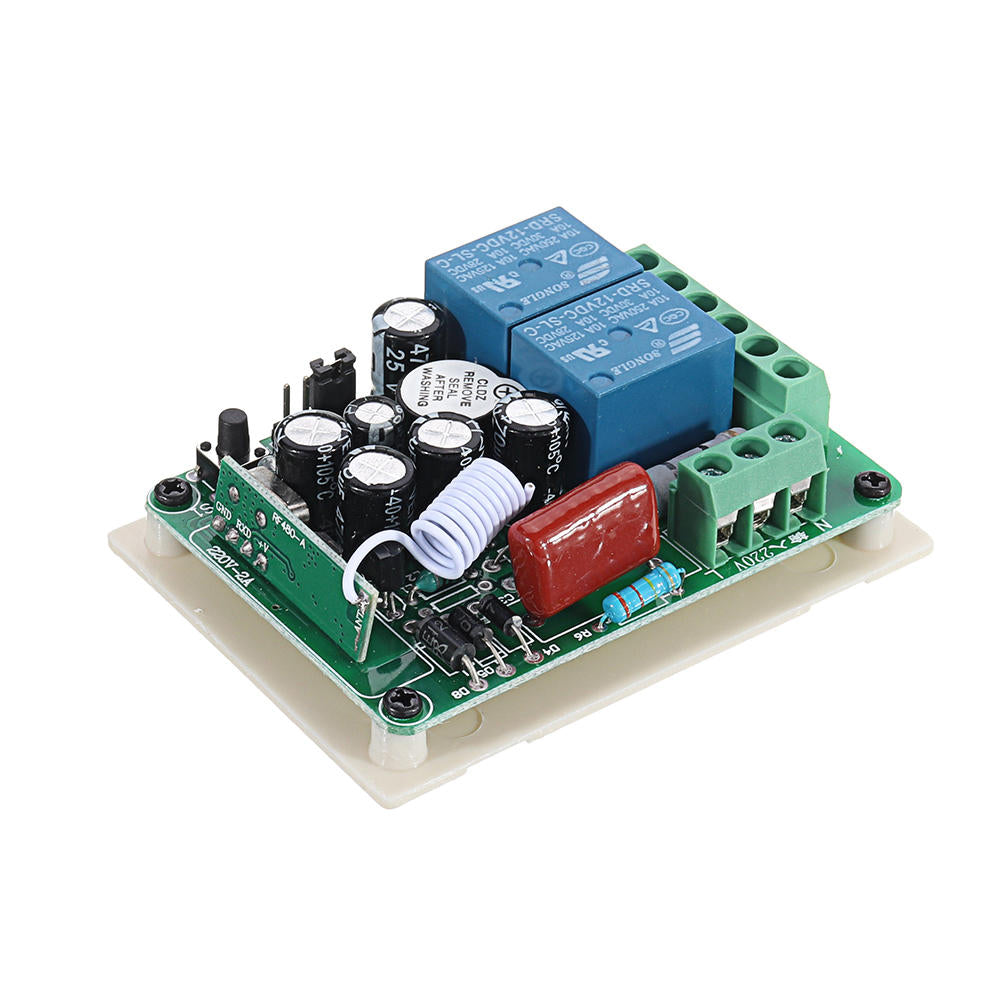

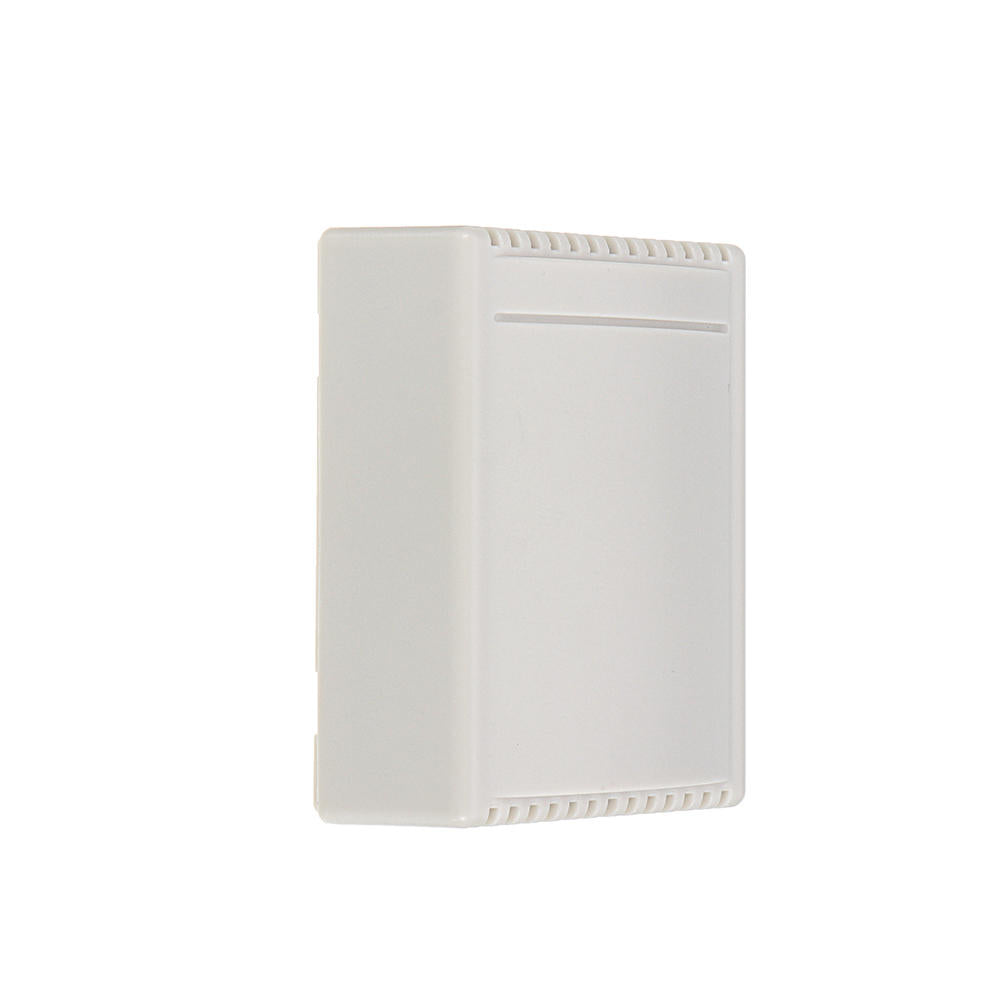

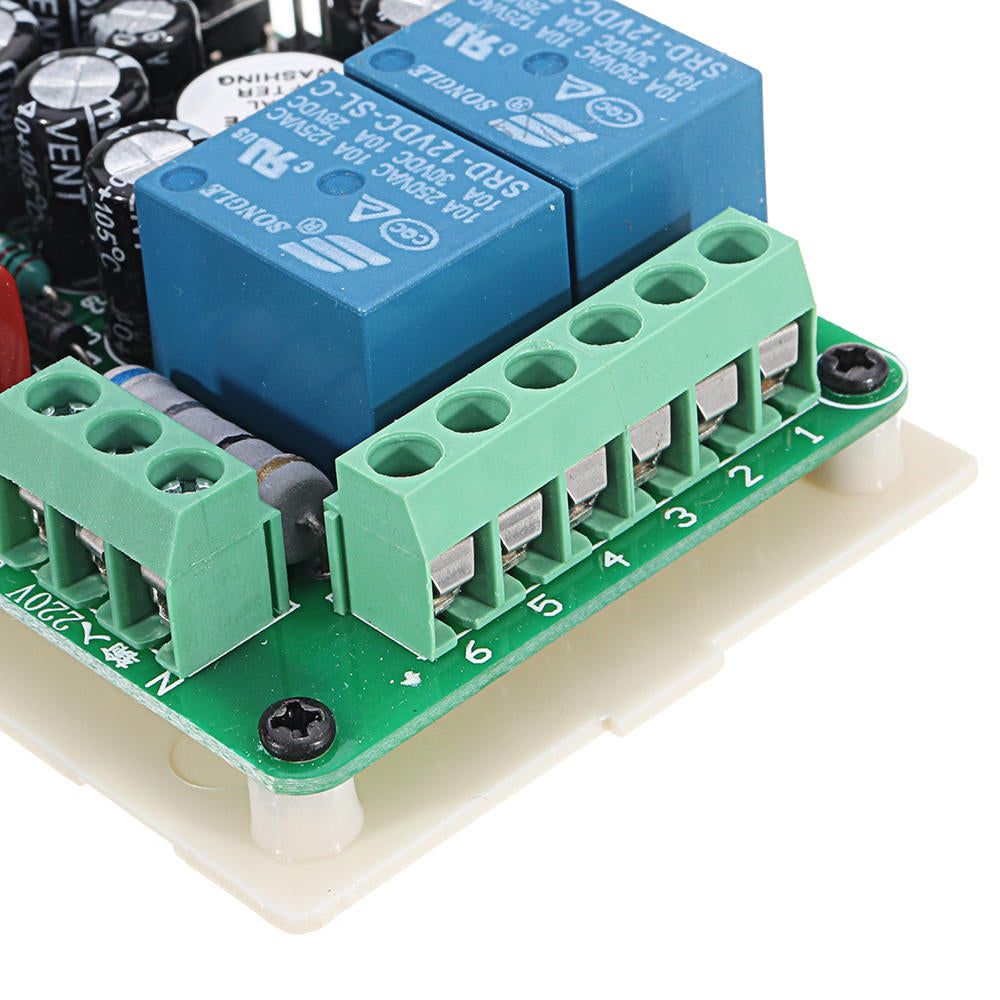

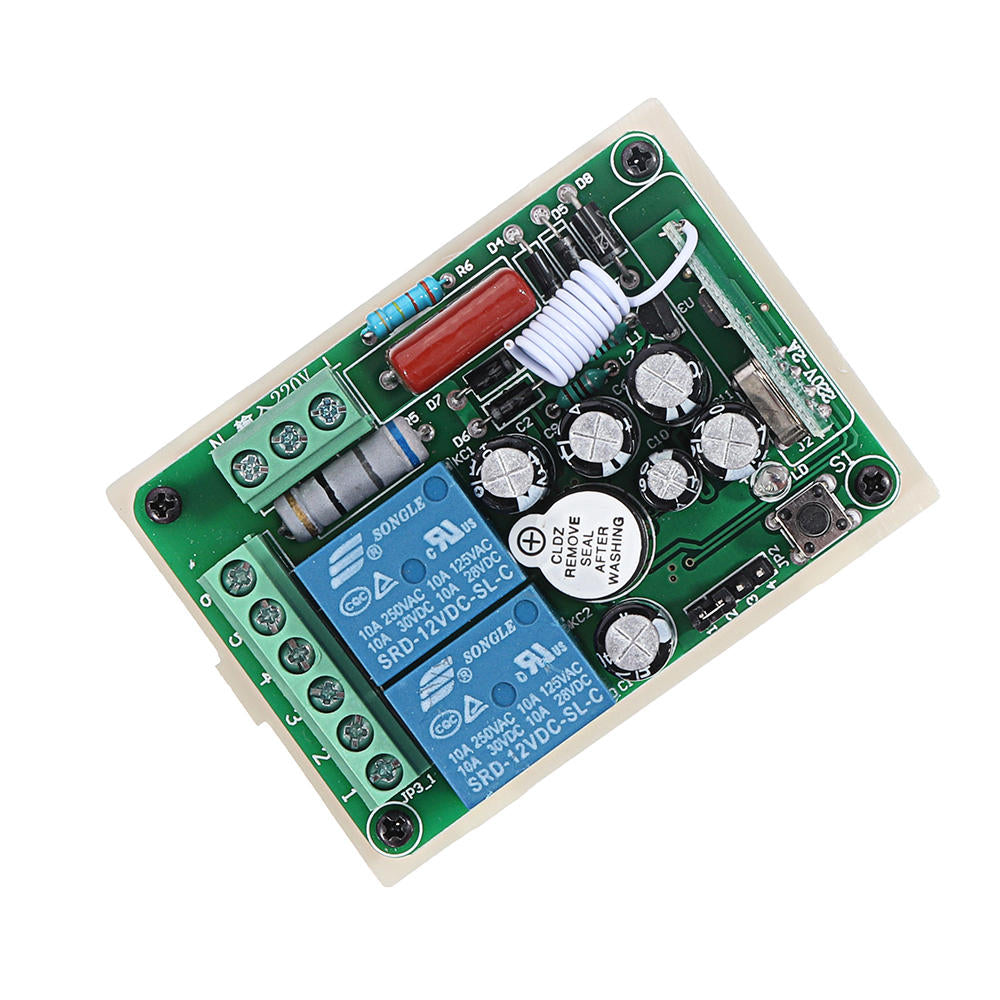

315MHz AC 220V 2 Channel RF Wireless Remote Control Switch System Module for Smart Home
Specifications: Working Voltage: AC220V-+10%Max Current : 10A (have better lower than 7A )Channel: 1CHWorking Frequency : 315MHZReceiver sensitivity: : -105DbWorking temperature : -10'C - +60'COutput way: Momentary. Toggle .Latched adjusted by...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
Specifications:
Working Voltage: AC220V-+10%
Max Current : 10A (have better lower than 7A )
Channel: 1CH
Working Frequency : 315MHZ
Receiver sensitivity: : -105Db
Working temperature : -10'C - +60'C
Output way: Momentary. Toggle .Latched adjusted by Jumper
Code type: Learning code Add Controller by the Learning Button on the receiver
Output State:

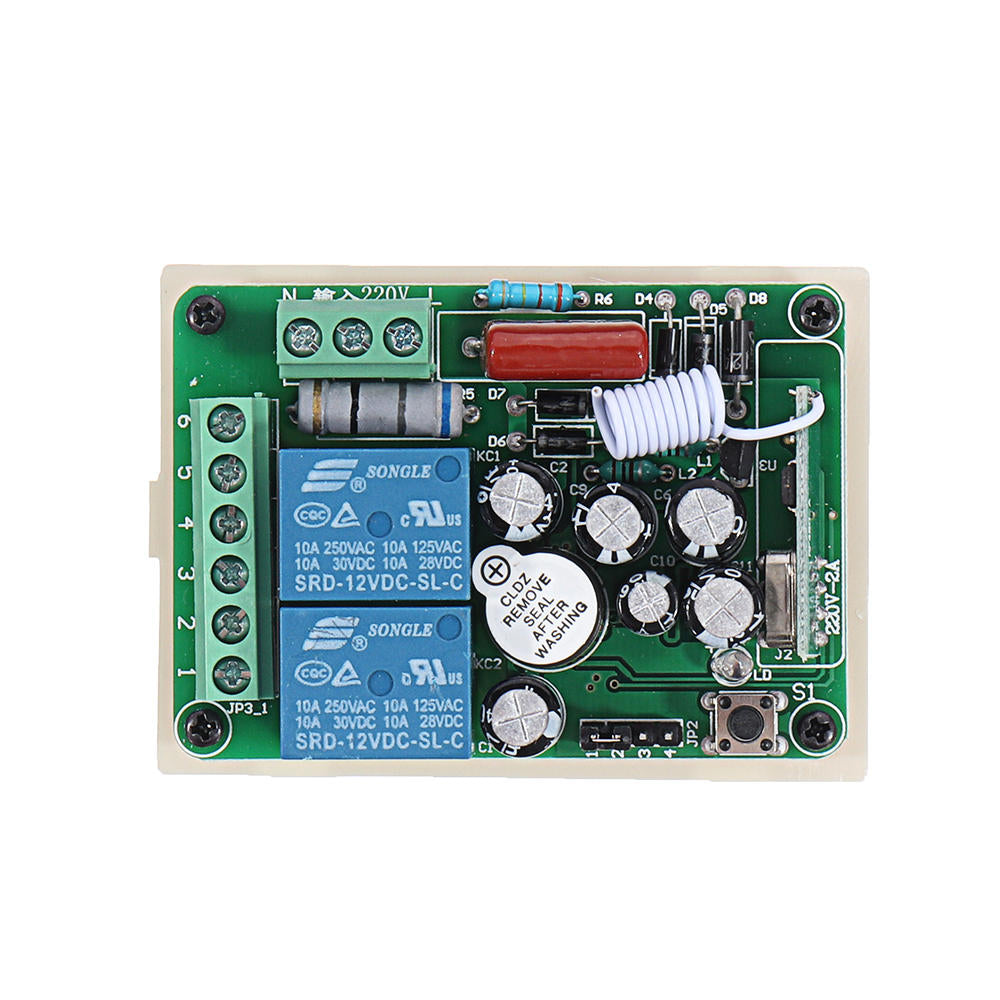

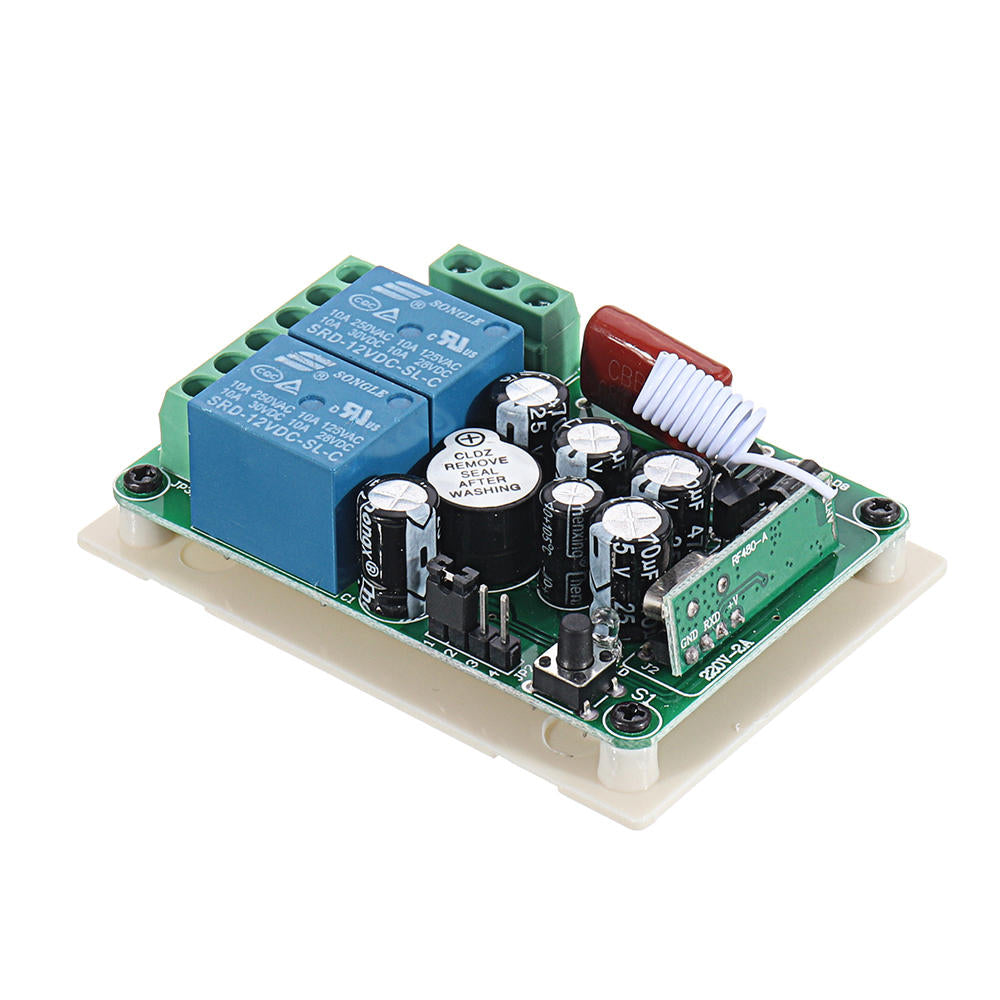

It is adjusted by the Jumper on the Receiver Board, (before you change it .you need turn OFF the power. Until you have changed it, then turn ON the power again, or the State will not be changed)
A: Momentary-----------Put the Jumper on “M&G”.
B: Toggle------------put the Jumper on “T&G
C: Latched------------- Take way the Jumper or put the Jumper on any 1 Pin.
Momentary------------Press the Transmitter button A, the receiver relay A is ON, release button A; the receiver relay A is OFF,
Toggle---------------Press transmitter button A for 1 time , the receiver relay A is ON, press button A again, the receiver relay A is OFF,
Latched------------Press transmitter button A, the receiver relay A is ON, Press transmitter button B, the relay A OFF.
Learning Method:
Input AC220V for the Receiver .Press the Learning Button until the Led indicator ON. Then press transmitter A, the Led indicator flash fast, Press the transmitter B , the Led indicator flash fast it mean learning successfully.
Clearing Code:
Press the learning Button and hold ,until the indicator from ON to OFF to flash fast,it mean the code have been cleared successfully.
Package Included:
1 x 315MHz AC 220V 2 Channel RF Wireless Remote Control Switch
