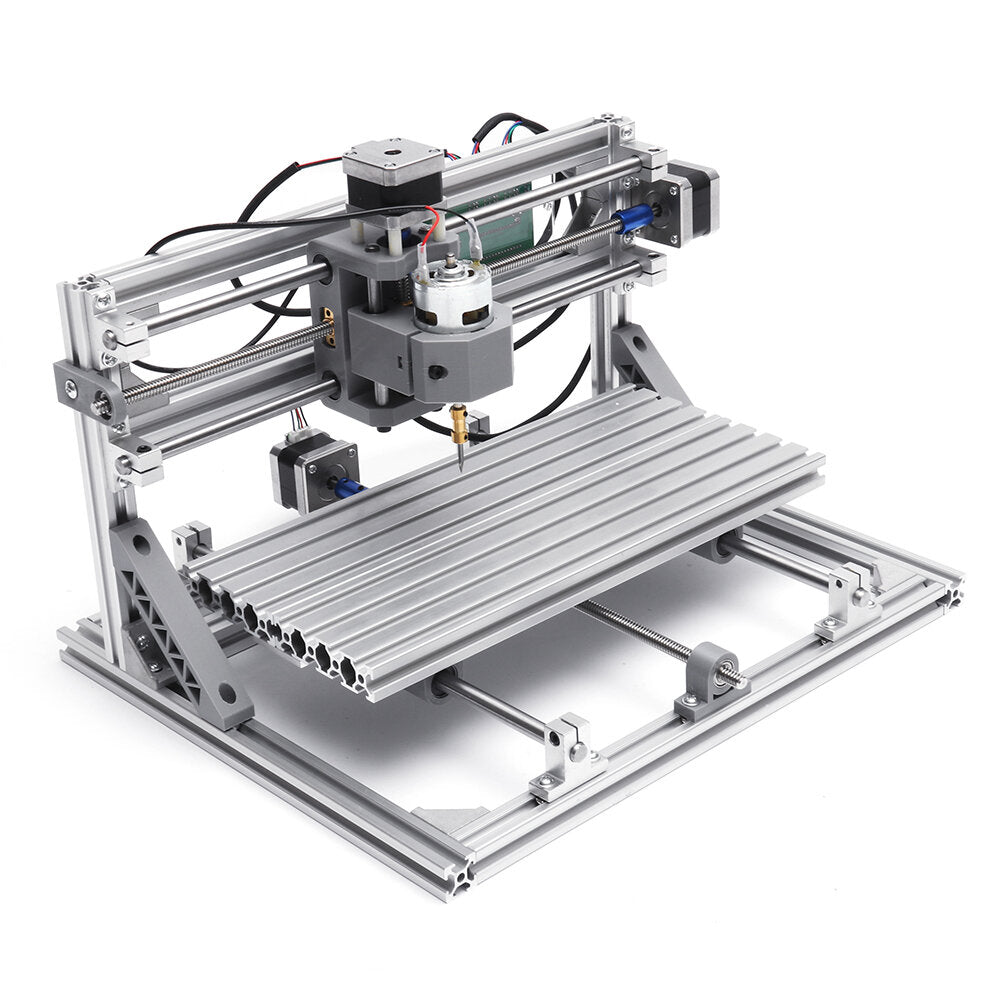

3018 3 Axis Mini DIY CNC Router Standard Spindle Motor Wood Engraving Machine Milling Engraver

3018 3 Axis Mini DIY CNC Router Standard Spindle Motor Wood Engraving Machine Milling Engraver

$324.99 $290.49

Description:3018 3 Axis Mini DIY CNC Router Standard Spindle Motor Wood Engraving Machine Milling EngraverSpecificaitons: General Specification Model Mini CNC3018 (Without Laser Module) Frame Material Aluminum Alloy Color Silver Table Area Approx. 340x160mm Working Area Approx. 340x160x40mm Product Weight...

🟢 In Stock

✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT

visamasteramerican expressgoogle paypaypal
Description

Description:

3018 3 Axis Mini DIY CNC Router Standard Spindle Motor Wood Engraving Machine Milling Engraver


Specificaitons:

General Specification
Model Mini CNC3018 (Without Laser Module)
Frame Material Aluminum Alloy
Color Silver
Table Area Approx. 340x160mm
Working Area Approx. 340x160x40mm
Product Weight 7.5kg
Control Software for Spindle GrblControl
Control Software for Laser Litefire
System Requirements Windows XP SP3, Win7, Win8, Win10.
Adapter Plug 2-Pin US Plug
Adapter Input Voltage AC 110-240V 50/60Hz
Adapter Output Voltage DC 24V 4A
Features 1. Aluminum Profile Stable Construction
2. 3 Axis Movable, Powerful Spindle Motor
3. Contains Quickstart Guide of GRBL Software
4. 340x160x40mm Working Area, Meet Most Amateur DIY Needs
5. Engrave Wood, Plastic, Acrylic, PCB, or Similar Material
Can Not Engrave Metal, Steel, Aluminum.
Technical Parameters
Working Voltage DC 24V
Interface USB
Stepper Motor 42 Stepper Motor, Voltage: 12V, Phase Current 1.3A, Torque 0.25N.m
Spindle Motor 775 Spindle Motor (12-36V) 24V: 7000r/min, 36V: 9000r/min
Spindle Motor Shaft Diameter 5mm


Features:

- Assembly requires a certain mechanical skill. All assembly components are included.
- Engraving Materials: The machine can carve wood, plastic, acrylic, PCB, or the like materials.
- Can Not Engrave: Hard metal (such as brass, steel, iron, etc), jade and other very hard texture items.


Note:
1. Instructions & Software: Assembly instructions, control software and further information please CLICK HERE
2. This item contains the spindle motor, but no laser module. If you want to use laser for engraving, you can buy it additionally. Thanks for your understanding, and please note that the
input interface (Should be XH2.54-3P or XH2.54-2P) and input voltage (Should be DC 12V) of the laser module should be compatible with the control board on 3018. Besides, the original motor
holder is round, please make sure the shape of your laser module is suitable for installation.

Now we recommend the laser module (2500mW Blue Laser Module) produced by the original manufacturer: ID: 1386316


Package Included: (Comes with plug adapter according to your country)

1 x
Wood Engraving Machine Full Set (Unassembled Delivery)


More Details:
