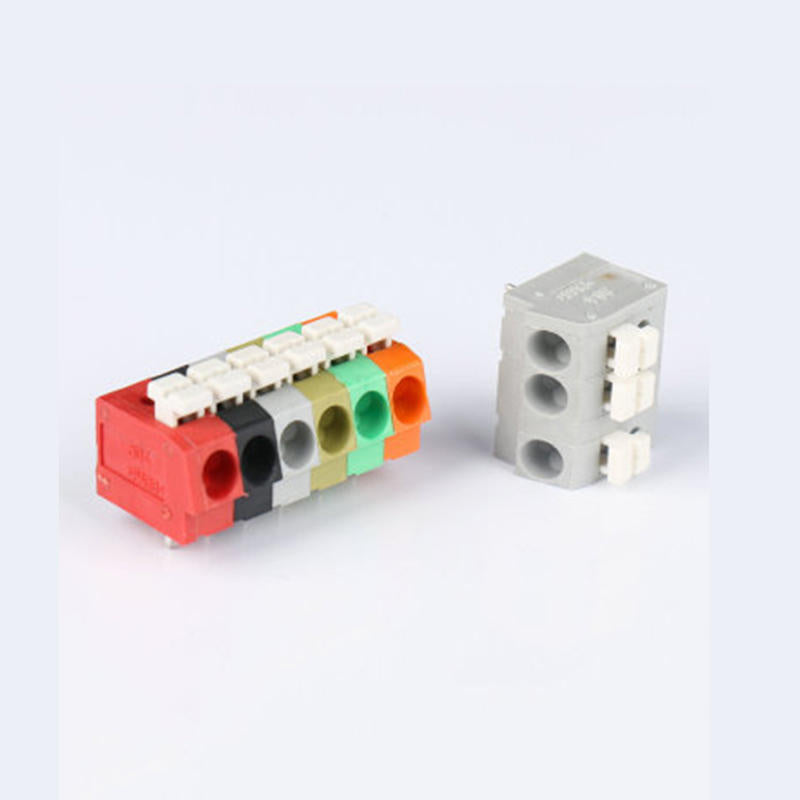

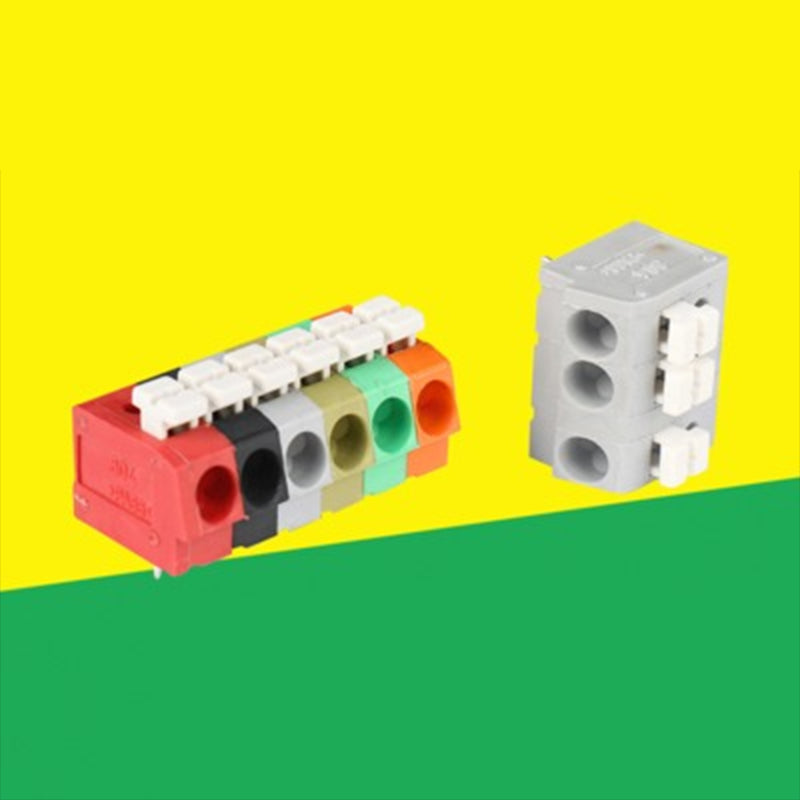

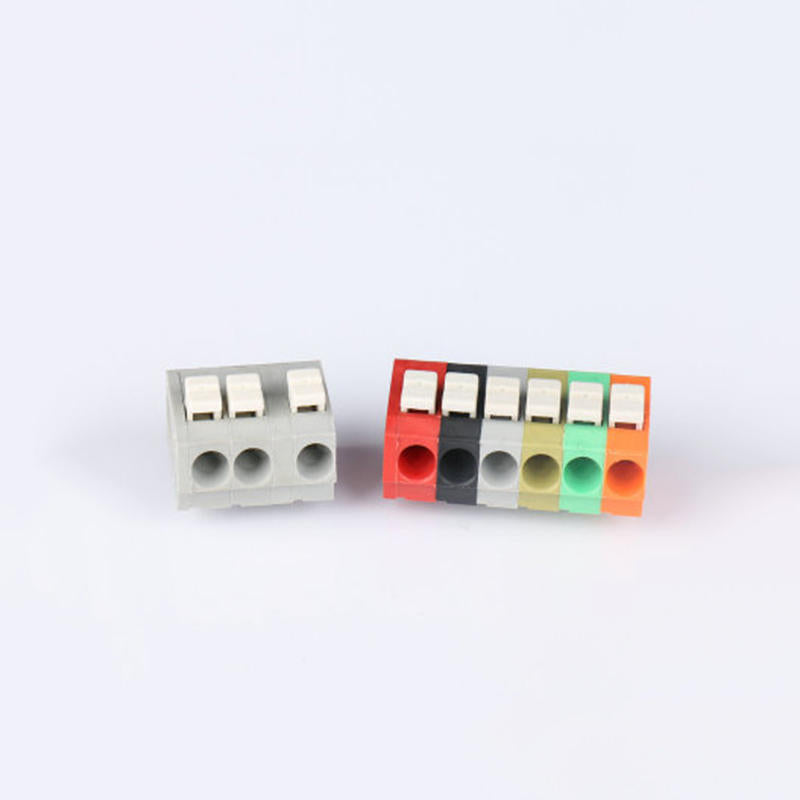

10PCS BEST 5 Pin Plug-in Brass Wire Connector Terminals LED Flame Retardant Terminal Block Connector
🟢 In Stock
Specification Brand BEST Type 5 Pin Wire range 20-12AWG Voltage rating 300V Current rating 15A Withstanding Voltage 2,000V Stripping length 9.0mm Material Insulator(housing) PA66, UL94V-0 Pin Header Brass Tin Plated...
✔️ WORLDWIDE FREE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
|Pin Header||Brass Tin Plated|
|Operating||-40°C to +105°C|
|Max soldering||+250°C For 5 seconds|
- The shell is nylon PA66, flame retardant 94V-0 grade, in accordance with European ROHS standards;
- It has elasticity, rigidity and resistance to the corrosion of most chemical reagents, and has a strong resistance to leakage current breakdown. It allows continuous working at 105°C and maintains stability. The short-term high temperature limit is 165°C, and the low temperature limit is -35°C;
- Conductor material - high precision imported copper (C5210), electroplated tin,
- Wire terminals are widely used in power supply, transformer, electronic appliances, communication field;
Press the button and insert the single or multi-strand wire (multi-strand wire needs soldering tin) with a length of 8-9mm into the hole completely.
Press the button and pull it to remove the wire. There is a test hole above the hole for testing.
10PCS 5 Pin Wire Connectors
